The N9K-C9332C is a Cisco Nexus 9332C compact 1RU ACI Spine Switch delivering 6.4 Tbps switching with 32x 40/100G QSFP28 ports and 2x 1/10G SFP+ management ports — supporting wire-rate MACsec on last 8 ports, NX-OS and ACI modes for high-density leaf-spine data center fabrics.
32x 40/100G QSFP28 Ports | 2x 1/10G SFP+ Ports | 6.4 Tbps Switching | 2.3 Bpps Forwarding | MACsec (Last 8 Ports) | NX-OS + ACI | 16GB RAM | 256GB SSD | Dual PSU | 1U Rack
Specifications:
Brand: Cisco | Model: N9K-C9332C | Series: Nexus 9000 | Ports: 32x 40/100G QSFP28 + 2x 1/10G SFP+ | Switching Capacity: 6.4 Tbps | Forwarding Rate: 2.3 Bpps | Buffer: 40MB | MAC Table: 92,000 entries | CPU: Broadwell-DE 4-Core | RAM: 16GB | SSD: 256GB | USB: 1 | Management: 1x 10/100/1000BASE-T + 1x 1G SFP+ | Form Factor: 1U Rack | Airflow: Port-side Intake or Exhaust (selectable)
Power:
Up to 2x 1100W AC/DC/HVAC/HVDC PSU (Hot-Swappable) | Fans: 5 (Hot-Swappable, Redundant)
MACsec: Wire-rate on Ports 25–32 (last 8 QSFP28 ports)
L3 Features:
BGP | OSPFv2/v3 | EIGRP | PIM | VXLAN + EVPN | HSRP | VRRP | ECMP
L2 Features:
802.1Q VLAN | MSTP | RPVST+ | vPC | LACP
Management:
NX-OS | ACI Mode | Python | NX-API | Streaming Telemetry | POAP | Cisco DCNM
The N9K-C9332C is a Cisco Nexus 9332C compact 1RU ACI Spine Switch delivering 6.4 Tbps switching with 32x 40/100G QSFP28 ports and 2x 1/10G SFP+ management ports — supporting wire-rate MACsec on last 8 ports, NX-OS and ACI modes for high-density leaf-spine data center fabrics.
32x 40/100G QSFP28 Ports | 2x 1/10G SFP+ Ports | 6.4 Tbps Switching | 2.3 Bpps Forwarding | MACsec (Last 8 Ports) | NX-OS + ACI | 16GB RAM | 256GB SSD | Dual PSU | 1U Rack
Specifications:
Brand: Cisco | Model: N9K-C9332C | Series: Nexus 9000 | Ports: 32x 40/100G QSFP28 + 2x 1/10G SFP+ | Switching Capacity: 6.4 Tbps | Forwarding Rate: 2.3 Bpps | Buffer: 40MB | MAC Table: 92,000 entries | CPU: Broadwell-DE 4-Core | RAM: 16GB | SSD: 256GB | USB: 1 | Management: 1x 10/100/1000BASE-T + 1x 1G SFP+ | Form Factor: 1U Rack | Airflow: Port-side Intake or Exhaust (selectable)
Power:
Up to 2x 1100W AC/DC/HVAC/HVDC PSU (Hot-Swappable) | Fans: 5 (Hot-Swappable, Redundant)
MACsec: Wire-rate on Ports 25–32 (last 8 QSFP28 ports)
L3 Features:
BGP | OSPFv2/v3 | EIGRP | PIM | VXLAN + EVPN | HSRP | VRRP | ECMP
L2 Features:
802.1Q VLAN | MSTP | RPVST+ | vPC | LACP
Management:
NX-OS | ACI Mode | Python | NX-API | Streaming Telemetry | POAP | Cisco DCNM

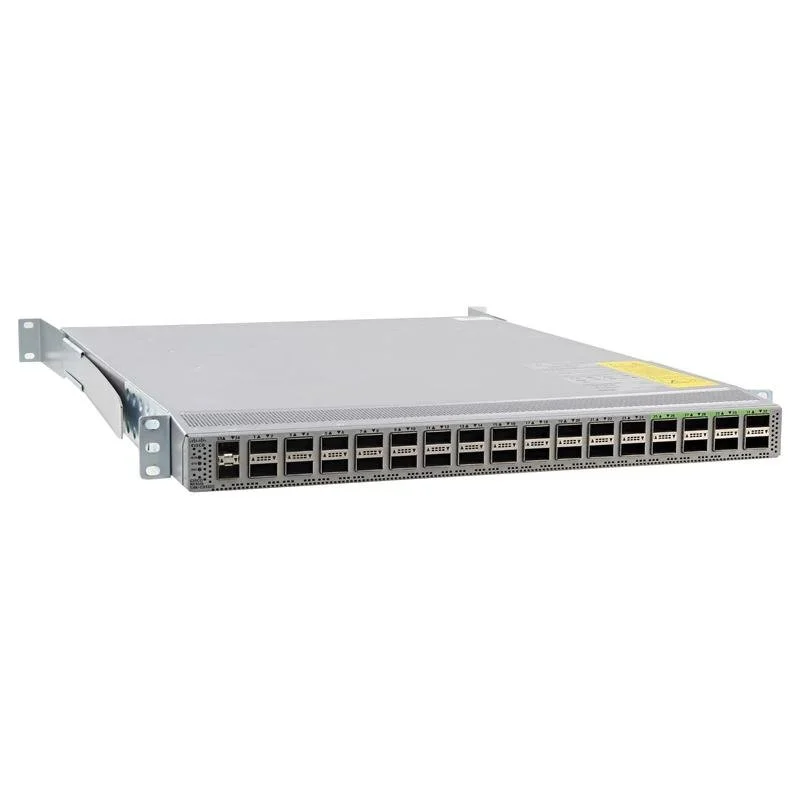

Image 1 of 2

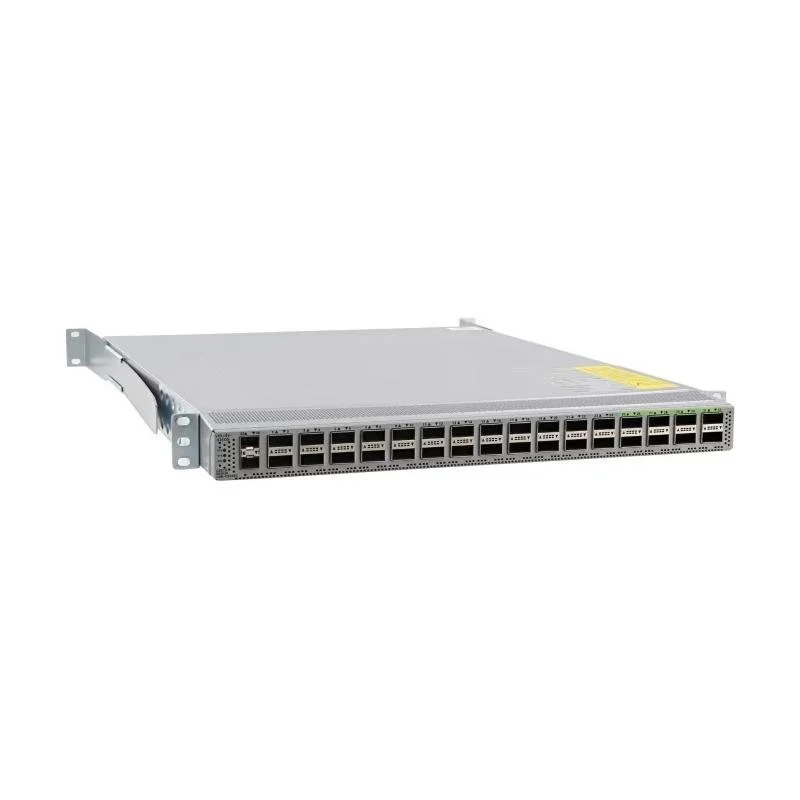

Image 2 of 2
