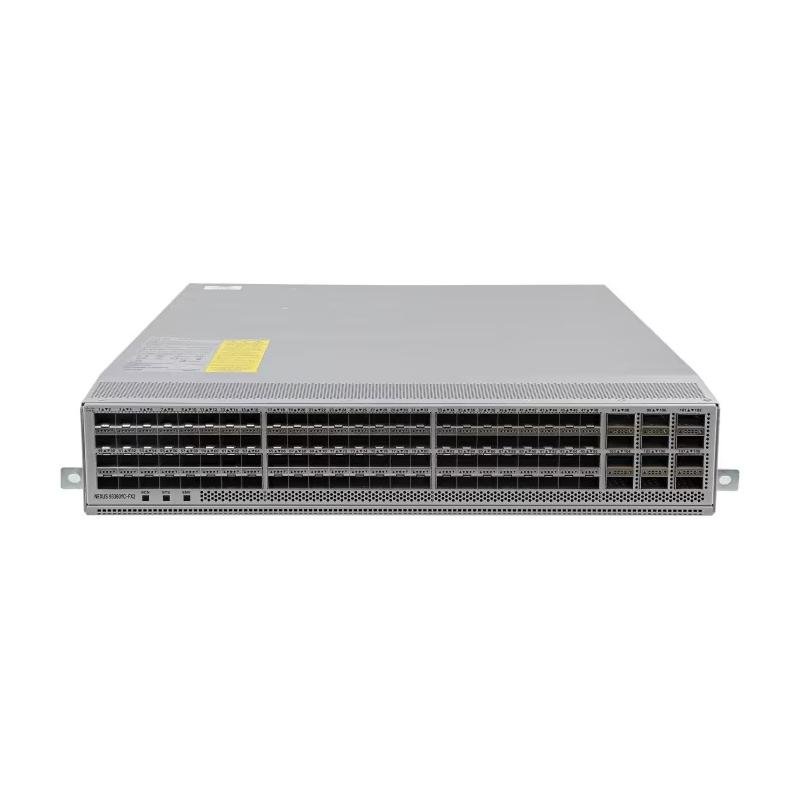

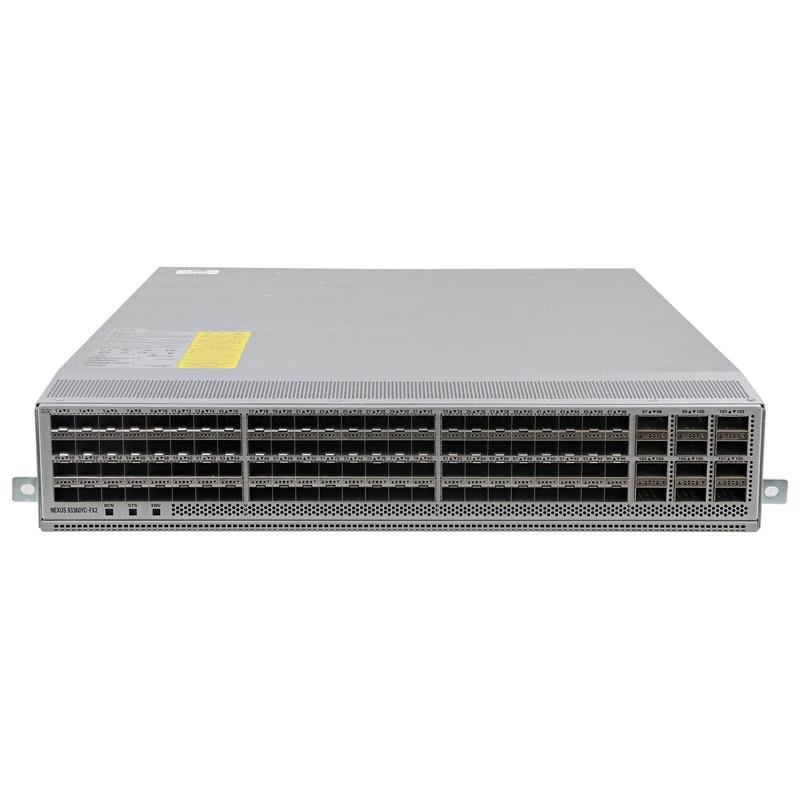

The N9K-C93360YC-FX2 is a Cisco Nexus 9300-FX2 2RU high-density leaf switch delivering 7.2 Tbps switching with 96x 1/10/25G SFP28 ports and 12x 40/100G QSFP28 uplinks — supporting MACsec, VXLAN, EVPN, and both NX-OS and ACI modes for AI, cloud, and enterprise data center deployments.
96x 1/10/25G SFP28 Ports | 12x 40/100G QSFP28 Uplinks | 7.2 Tbps Switching | 2.4 Bpps Forwarding | MACsec | VXLAN + EVPN | NX-OS + ACI | 40MB Buffer | Cloud Scale ASIC | 2U Rack
Specifications:
Brand: Cisco | Model: N9K-C93360YC-FX2 | Series: Nexus 9300-FX2 | Ports: 96x 1/10/25G SFP28 + 12x 40/100G QSFP28 | Switching Capacity: 7.2 Tbps | Forwarding Rate: 2.4 Bpps | Buffer: 40MB | MAC Table: 256,000 entries | CPU: 4-Core | RAM: 16GB | SSD: 128GB | USB: 1 | Management: 1x RJ45 + 1x SFP+ | Serial: 1x RS-232 | Form Factor: 2U Rack | Airflow: Port-side Intake or Exhaust (selectable)
Breakout:
Ports 97–108 (QSFP28): 4x10G or 4x25G
Power:
Up to 2x 1200W AC/HVAC/HVDC PSU | Input: 100–277V AC | Fans: 3 Fan Trays | Typical: 404W | Max: 900W
L3 Features:
BGP | OSPF | EIGRP | RIP/RIP-2 | PIM-SM | MSDP | MPLS | RSVP | ECMP | VXLAN + EVPN | HSRP | VRRP
L2 Features:
802.1Q VLAN | MSTP | STP | RPVST+ | vPC | LACP | MACsec (IEEE 802.1AE)
Security:
MACsec | ACL | CoPP | RBAC | SSH | DHCP Snooping
Automation:
NX-OS | ACI Mode | POAP | Python | NX-API | Streaming Telemetry | RS-FEC + FC-FEC | AFD Congestion Control
