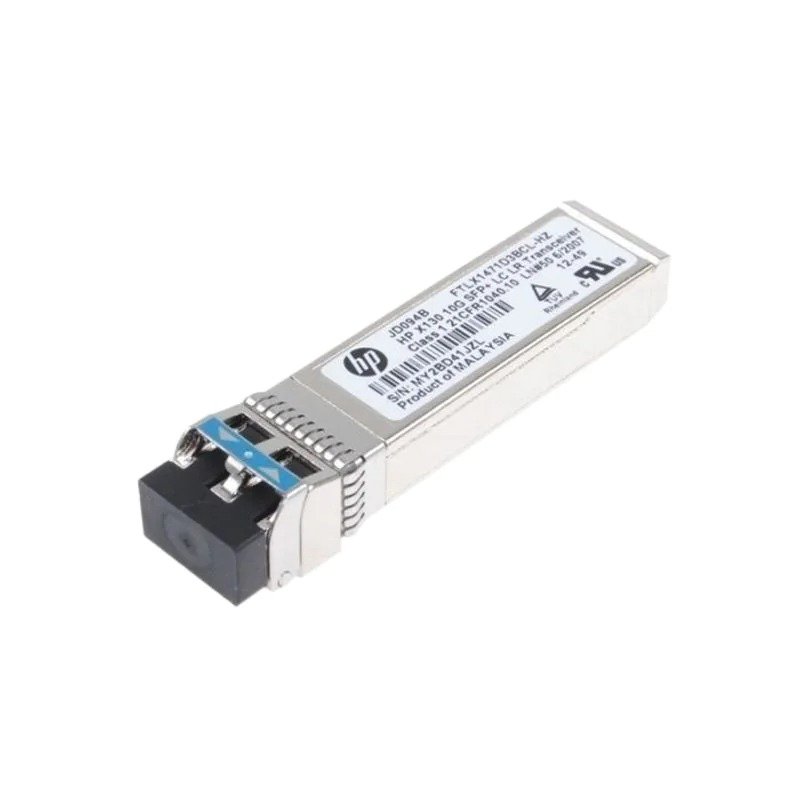

The JD094B is an HPE Networking X130 10G SFP+ LC LR Transceiver designed for long-range 10Gb Ethernet connectivity over single-mode fiber. It uses a 1310 nm optical wavelength and supports transmission distances of up to 10 km, making it suitable for enterprise networks, data centers, campus infrastructure, and long-distance switch-to-switch uplinks. Its SFP+ form factor and LC interface provide a compact, reliable fiber connectivity solution for compatible HPE Networking equipment. :contentReference[oaicite:0]{index=0}
Key Highlights
10Gb Ethernet | SFP+ Form Factor | LC Duplex Connector | 1310 nm Wavelength | 10GBASE-LR | Up to 10 km Transmission Distance | Single-Mode Fiber | Long-Range Fiber Connectivity | Enterprise Networking | Data Center Uplink
Specifications
Brand: HPE | Model: JD094B | Product: HPE Networking X130 10G SFP+ LC LR Transceiver | Type: SFP+ Optical Transceiver | Family: HPE Networking X130 | Data Rate: 10.31 Gbps | Ethernet Standard: 10GBASE-LR | Wavelength: 1310 nm | Connector: LC | Fiber Type: Single-Mode Fiber (SMF) | Fiber Diameter: 9/125 µm | Maximum Distance: 10 km | Interface: 10GbE | Form Factor: SFP+ :contentReference[oaicite:1]{index=1}
Connectivity
10GbE | 10GBASE-LR | LC Duplex | Single-Mode Fiber | SFP+ Interface | Full-Duplex Connectivity
Fiber Specifications
1310 nm Optical Wavelength | Single-Mode Fiber | 9/125 µm Fiber | Up to 10 km | LC Optical Interface | Long-Range 10Gb Ethernet
Applications
10GbE Network Uplinks | Data Center Connectivity | Enterprise Campus Networks | Long-Distance Switch-to-Switch Links | High-Speed Fiber Networking | Server Connectivity | Network Infrastructure Upgrades
Compatibility
Compatible HPE Networking Devices | HPE Networking Switches | HPE Networking Routers | HPE Comware Devices | Compatible SFP+ Ports
The JD094B is an HPE Networking X130 10G SFP+ LC LR Transceiver designed for long-range 10Gb Ethernet connectivity over single-mode fiber. It uses a 1310 nm optical wavelength and supports transmission distances of up to 10 km, making it suitable for enterprise networks, data centers, campus infrastructure, and long-distance switch-to-switch uplinks. Its SFP+ form factor and LC interface provide a compact, reliable fiber connectivity solution for compatible HPE Networking equipment. :contentReference[oaicite:0]{index=0}
Key Highlights
10Gb Ethernet | SFP+ Form Factor | LC Duplex Connector | 1310 nm Wavelength | 10GBASE-LR | Up to 10 km Transmission Distance | Single-Mode Fiber | Long-Range Fiber Connectivity | Enterprise Networking | Data Center Uplink
Specifications
Brand: HPE | Model: JD094B | Product: HPE Networking X130 10G SFP+ LC LR Transceiver | Type: SFP+ Optical Transceiver | Family: HPE Networking X130 | Data Rate: 10.31 Gbps | Ethernet Standard: 10GBASE-LR | Wavelength: 1310 nm | Connector: LC | Fiber Type: Single-Mode Fiber (SMF) | Fiber Diameter: 9/125 µm | Maximum Distance: 10 km | Interface: 10GbE | Form Factor: SFP+ :contentReference[oaicite:1]{index=1}
Connectivity
10GbE | 10GBASE-LR | LC Duplex | Single-Mode Fiber | SFP+ Interface | Full-Duplex Connectivity
Fiber Specifications
1310 nm Optical Wavelength | Single-Mode Fiber | 9/125 µm Fiber | Up to 10 km | LC Optical Interface | Long-Range 10Gb Ethernet
Applications
10GbE Network Uplinks | Data Center Connectivity | Enterprise Campus Networks | Long-Distance Switch-to-Switch Links | High-Speed Fiber Networking | Server Connectivity | Network Infrastructure Upgrades
Compatibility
Compatible HPE Networking Devices | HPE Networking Switches | HPE Networking Routers | HPE Comware Devices | Compatible SFP+ Ports
