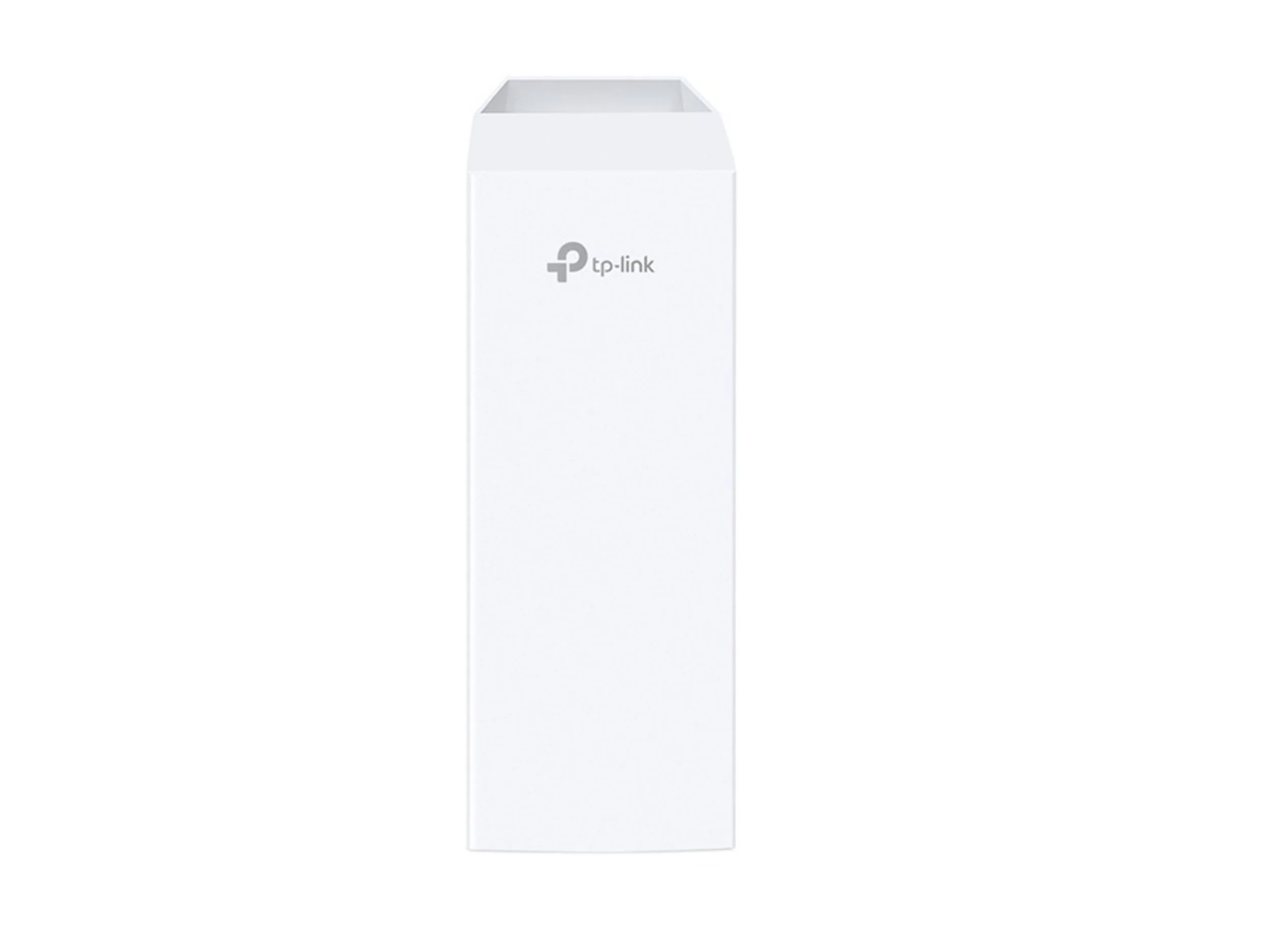

The CPE510 is a 5GHz 300 Mbps 13 dBi Outdoor CPE dedicated to cost-effective long-range wireless networking — ideal for point-to-point and point-to-multipoint deployments up to 15+ km with MAXtream TDMA, passive PoE, and 6KV lightning protection.
5GHz 300 Mbps | 13 dBi Dual-Polarized MIMO Antenna | 15+ km Range | MAXtream TDMA | 6KV Lightning Protection | 15KV ESD Protection | IPX5 Waterproof | Passive PoE | Spectrum Analyzer
Specifications:

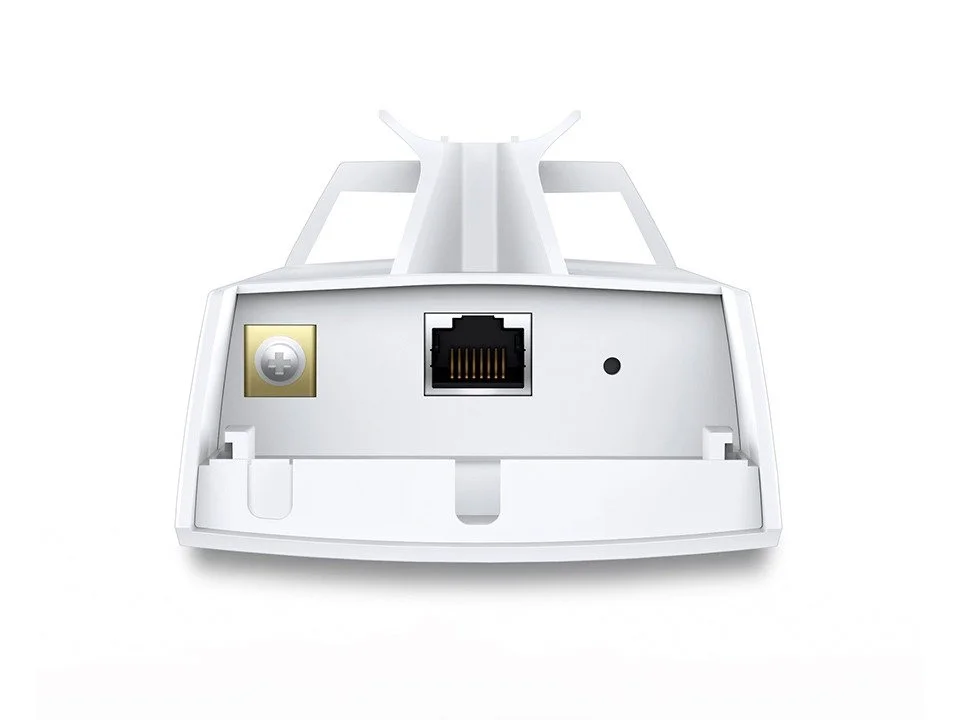

Brand: TP-Link | Model: CPE510 | Wireless: 802.11n | Speed: 300 Mbps | Frequency: 5GHz | Antenna Gain: 13 dBi | Max Range: 15+ km | Ports: 1x 10/100 Mbps Shielded Ethernet (LAN0, Passive PoE in) + 1x 10/100 Mbps Shielded Ethernet (LAN1, PoE Passthrough) | Power: Passive PoE (16–27VDC) | Max TX Power: 27 dBm/500mW | IP Rating: IPX5
Operation Modes:
Access Point | Client | Bridge | Repeater | AP Router | AP Client Router (WISP)
Features:
MAXtream TDMA | Spectrum Analyzer | Throughput Monitor | Speed Test | Ping Tools | 6KV Lightning Protection | 15KV ESD Protection | Pharos Control Centralized Management
