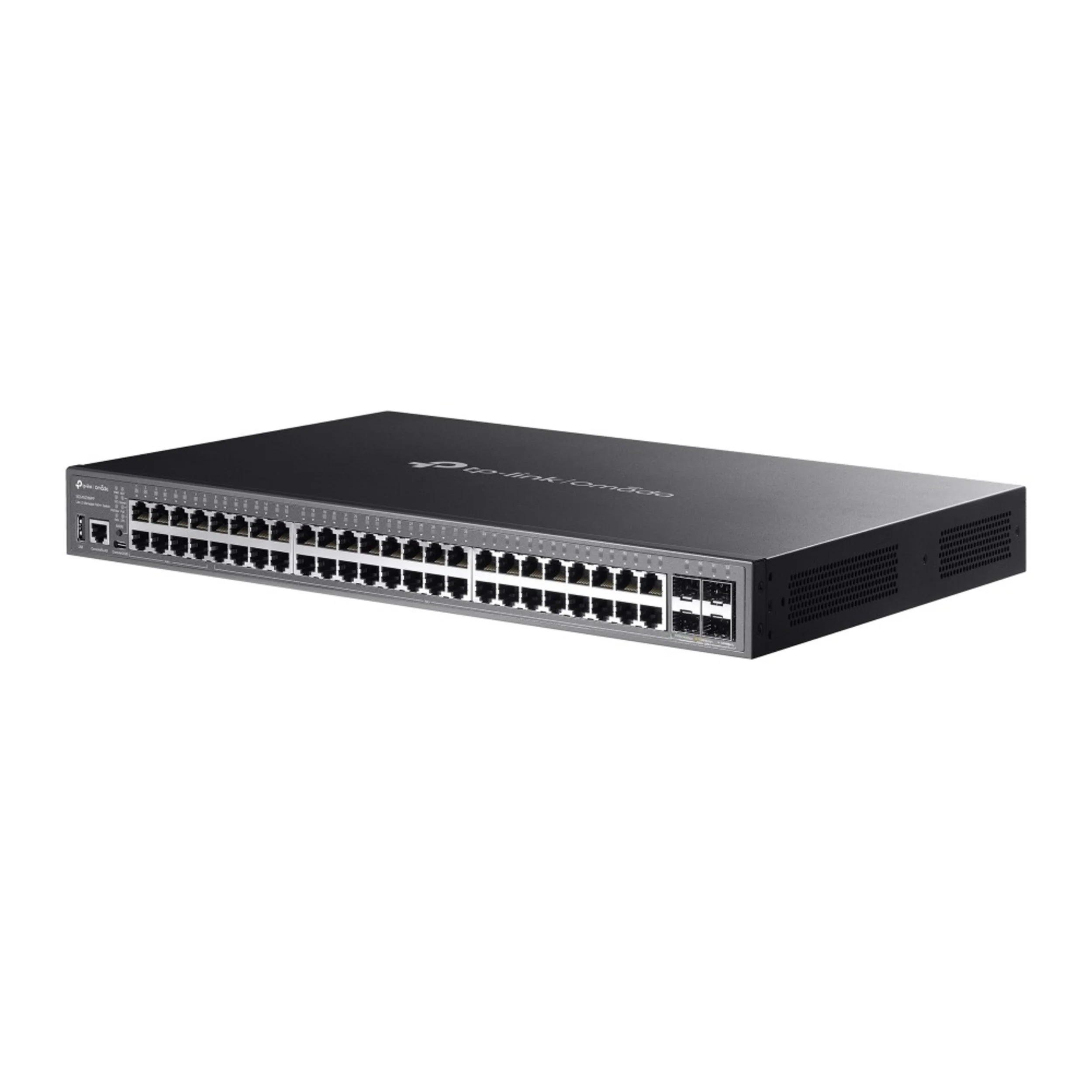

The SG5452XMPP is an Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 770W PoE budget, 40x PoE+ and 8x PoE++ ports (up to 90W/port), 4x 10G SFP+ uplinks, stacking, OSPF, and Omada SDN — built for large-scale enterprise deployments.
770W PoE Budget | 40x Gigabit PoE+ + 8x Gigabit PoE++ Ports (90W/port) | 4x 10G SFP+ Uplinks | 802.3bt/at/af | Stackable | OSPF + RIP + Static Routing | Fast PoE | Perpetual PoE | ERPS | Omada SDN | Rack Mountable
Specifications:

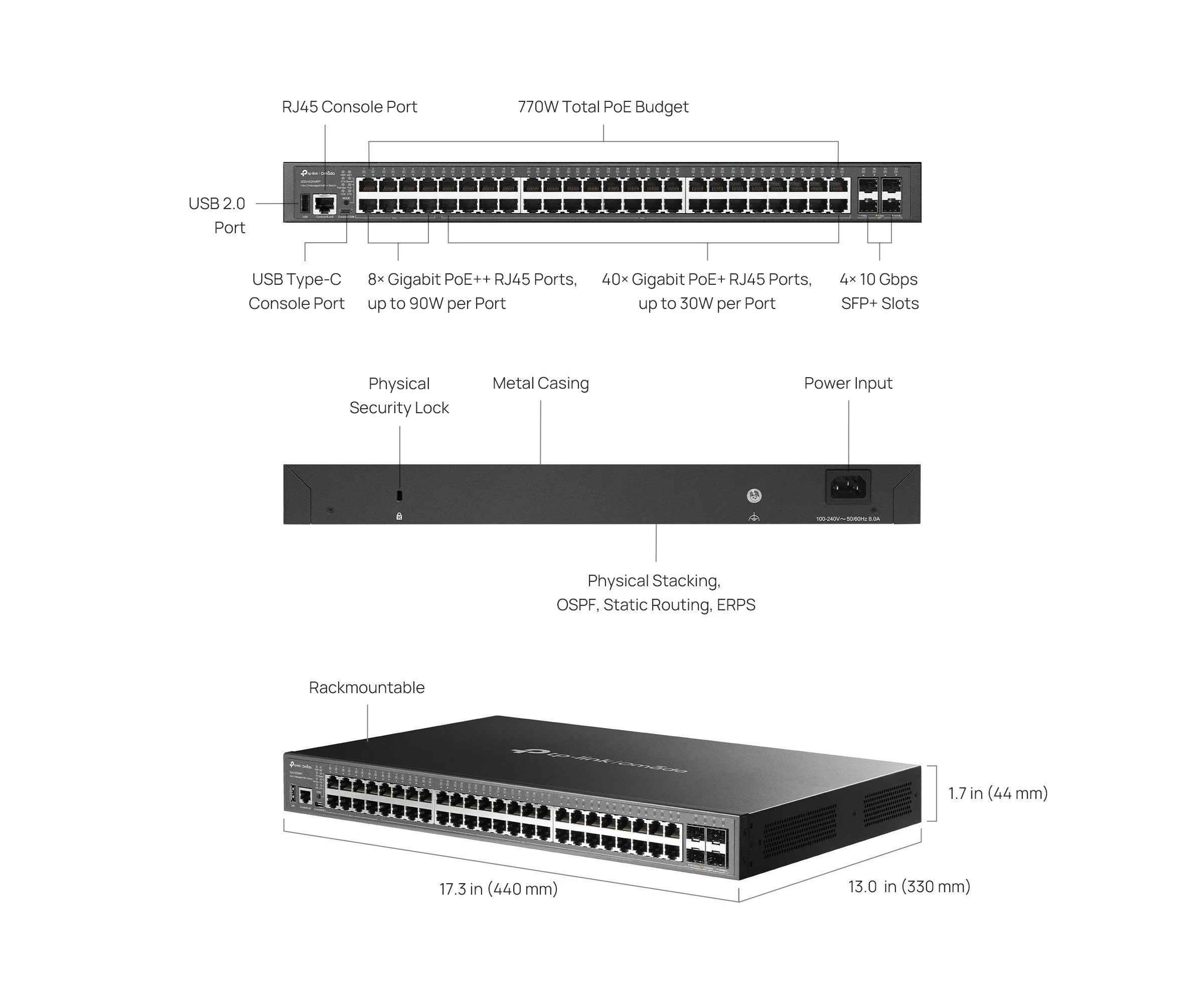

Brand: TP-Link | Model: SG5452XMPP | Ports: 40x Gigabit PoE+ + 8x Gigabit PoE++ (max 90W/port) + 4x 10G SFP+ | Console: 1x RJ45 + 1x USB Type-C | USB: 1x USB 2.0 | PoE: 802.3bt/at/af | PoE Budget: 770W | Mounting: 1U 19-inch Rack | Case: Steel
L3 Features:
Static Routing | RIP | OSPF | Stacking
L2+ Features:
802.1Q VLAN | QinQ | STP/RSTP/MSTP | ERPS | IGMP Snooping | LACP | OAM | DDM | sFlow | Fast PoE | Perpetual PoE
QoS: 802.1p/DSCP Priority
Security:
ACL | 802.1X | RADIUS/TACACS+ Authentication
Management:
Omada SDN | CLI | SNMP | Dual Image/Configuration | IPv6 | Centralized Management
