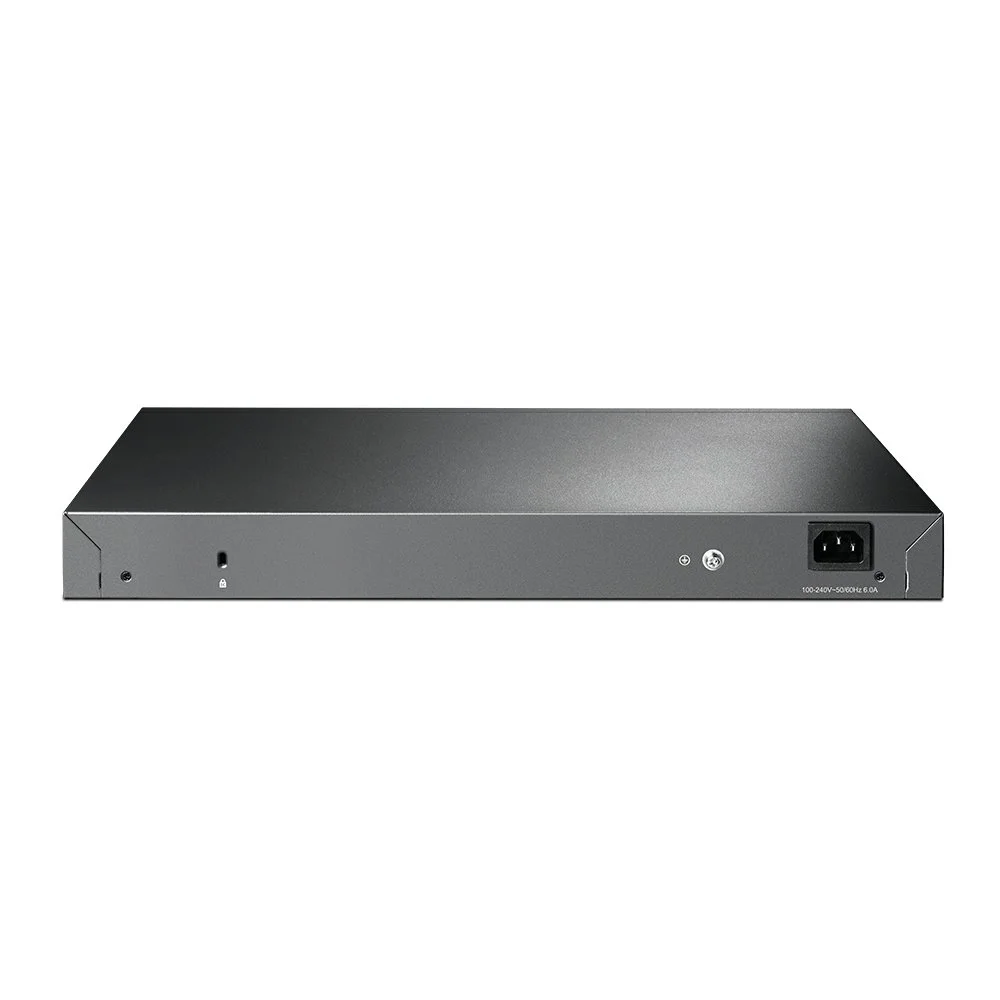

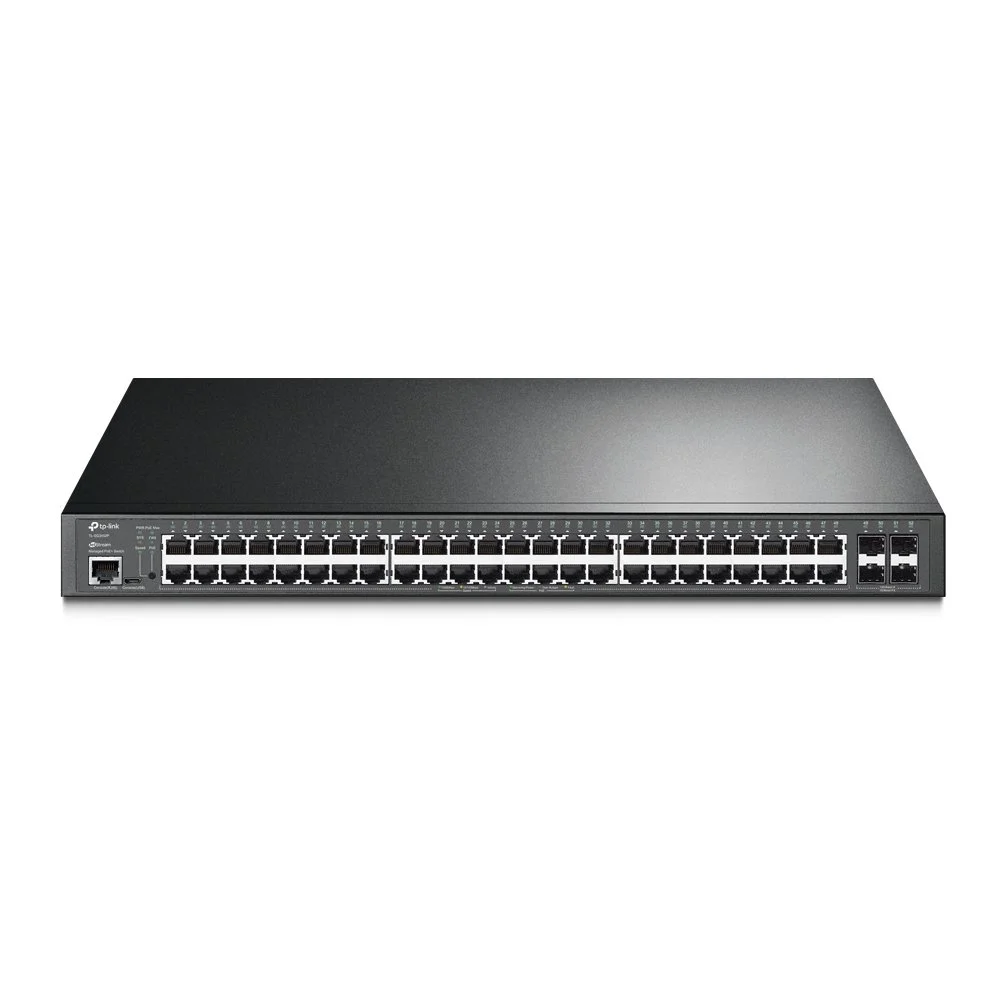

The TL-SG3452P is a JetStream 52-Port Gigabit L2+ Managed PoE+ Switch with 384W PoE budget, 4x SFP slots, Omada SDN integration, and enterprise-grade security — ideal for scalable business network deployments.
384W PoE Budget | 48x Gigabit PoE+ Ports | 4x Gigabit SFP Slots | 104 Gbps Switching | Omada SDN | Zero-Touch Provisioning | Static Routing | L2/L3/L4 QoS | IPv6
Specifications:
Brand: TP-Link | Model: TL-SG3452P | Ports: 48x Gigabit RJ45 + 4x Gigabit SFP | Console: 1x RJ45 + 1x Micro-USB | PoE+: 48 Ports, 802.3at/af, up to 30W per port | PoE Budget: 384W | Mounting: Rack | Fans: 3
Performance:
Switching Capacity: 104 Gbps | Forwarding Rate: 77.4 Mpps | MAC Table: 16K | Packet Buffer: 12 Mbit | Jumbo Frame: 9KB
Power:
Input: 100–240V AC, 50/60Hz | Max Consumption: 52.5W (no PD) | 485.4W (with 384W PD)
QoS:
8 Priority Queues | 802.1p CoS/DSCP | SP, WRR, SP+WRR Scheduling | Port/Flow Rate Limiting | QoS Remark
L3 Features:
16 IPv4/IPv6 Interfaces | 48 Static Routes | Static ARP | Proxy ARP | DHCP Server, Relay, L2 Relay
L2 Features:
802.3ad LACP | STP/RSTP/MSTP | Loopback Detection | Port Mirroring | HOL Blocking Prevention | 802.3x Flow Control
VLAN:
Max 4K VLAN Groups | 802.1q Tagged | MAC VLAN | Protocol VLAN | QinQ | Voice VLAN | GVRP
Security:
IP-MAC-Port Binding | DHCP Snooping | ARP Inspection | IPv4/IPv6 Source Guard | DoS Defend | Port Security (64 MAC/port) | Storm Control | 802.1X | AAA/TACACS+ | Port Isolation | HTTPS SSLv3/TLS 1.2 | SSHv1/v2
IGMP/MLD:
IGMP v1/v2/v3 Snooping | MLD v1/v2 Snooping | 511 Multicast Groups | MVR | Fast Leave
Management:Web GUI | CLI (Console, Telnet, SSH) | SNMPv1/v2c/v3 | RMON (1,2,3,9) | LLDP/LLDP-MED | Dual Image + Dual Config | Cable Diagnostics | SNTP | System Log | Omada App | Cloud Access | ZTP
IPv6:
Dual IPv4/IPv6 | MLD Snooping | IPv6 ACL | Static IPv6 Routing | DHCPv6 | ICMPv6 | TCPv6/UDPv6
Physical:
Dimensions: 440 x 330 x 44 mm (17.3 x 13.0 x 1.7 in.)
Temperature:
Operating: 0–40°C | Storage: -40–70°C | Humidity: 10–90% RH (non-condensing)
Certifications: CE, FCC, RoHS
In the Box:
TL-SG3452P Switch | Power Cord | Rackmount Kit | Rubber Feet | Quick Installation Guide
